Technical Details
| Specification | |
|---|---|
| Product code | FP-MF200-CAV |
Educational Advantages | Designed to demonstrate the following: normal pump inlet restriction, abnormally high pump inlet restriction, abnormally low pump inlet restriction, what occurs when oil is discharged above the oil level in a hydraulic reservoir, what occurs when the pump inlet is too close to the surface of the oil – vortex. |
|---|---|
Teach students the following | Physics associated with the operation of a hydraulic pump How the inlet side of a hydraulic pump works How design influences the amount of restriction at the inlet side of a pump Common design “oversights” when designing hydraulic pump intakes Why it is critical to know what a particular pump’s normal inlet restriction is What role altitude plays in the operation at the inlet side of a pump What causes pump inlet restriction to increase to a level that can cause cavitation, the most common cause of abnormally high inlet restriction What causes pump inlet restriction to decrease to a level that can cause pseudo-cavitation The most common cause of abnormally low pump inlet restriction What occurs when flow discharges above the oil level in a hydraulic reservoir What causes a “vortex” to occur in a hydraulic system Why it is critical to “trend” pump inlet restriction |

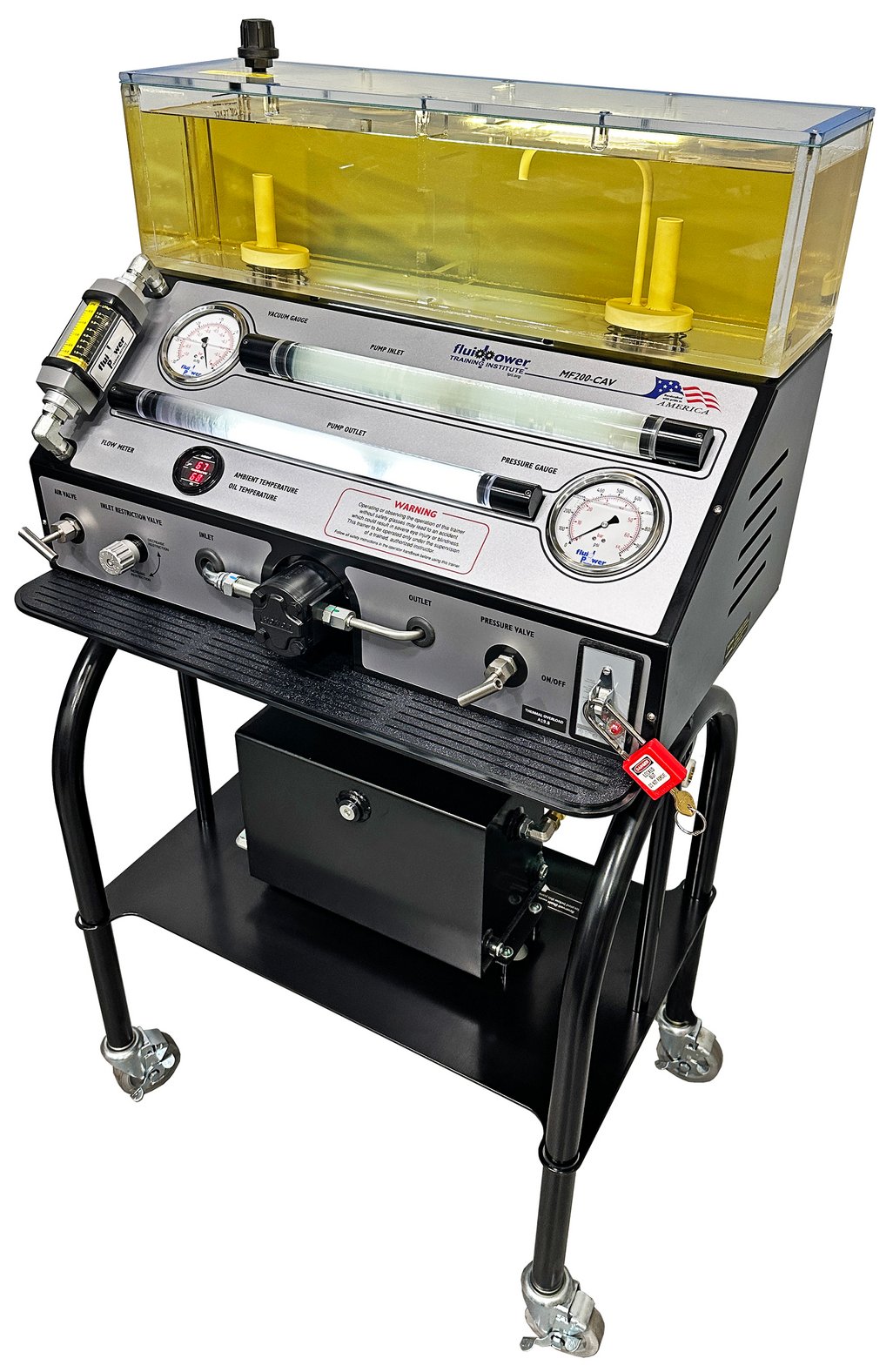

Components included | Steel cart finished in durable, powder-coat Four wheel casters with brakes Fixed-displacement gear pump (2.0 GPM [7.57 Lpm]) 1-HP, 115V single-phase, C-face electric motor Pre-set safety pressure relief valve Adjustable inlet restrictor valve Adjustable resistance valve Adjustable air inlet valve Panel-mounted, in-line flow meter (0.2–2.0 GPM/0.76-7.57 Lpm) Panel-mounted, digital oil temperature gauge Panel-mounted, digital ambient temperature gauge Panel-mounted, 4 inch, Bourdon tube-type, glycerine-filled 0-30” (0-762mm) Hg vacuum gauge Panel-mounted, 4 inch, Bourdon tube-type, glycerine-filled 0–600 PSI (41.4 bar) pressure gauge Top-mounted, transparent reservoir with baffles - 5.3 gallon (20 Lpm) capacity Removable filler/breather cap Transparent pump suction line Transparent pump outlet port transmission line ON/OFF switch with thermal overload protection Stainless-steel tubing with Swage-Lok®-type stainless-steel connectors Face-plates finished with anodized, brushed aluminum Rugged, welded, powder-coat finished frame with storage shelf Adjustable height inlet tube inside tank Discharge tube above the oil level |
