Technical Details
| Specification | |
|---|---|
| Product code | HV-950-QSB_035106 |
Educational Advantages | Includes Student activities Demonstration of major engine systems to groups of students without the access limitations of a complete vehicle Engine systems respond to inserted faults with real world symptoms, OEM DTCs and MIL operation Functional DLC using SAE J1939 communication protocol Student can diagnose and troubleshoot fuel system Student can diagnose and troubleshoot engine management system Student can diagnose and troubleshoot electrical/electronic system Student can obtain electronic parameters using diagnostic equipment Student can obtain technical data and information from the trainers through an electronic service tool connection Student can perform testing procedures oaf all electrical and mechanical systems Allow user to exercise test procedures as outlined in OEM service manuals |
|---|---|

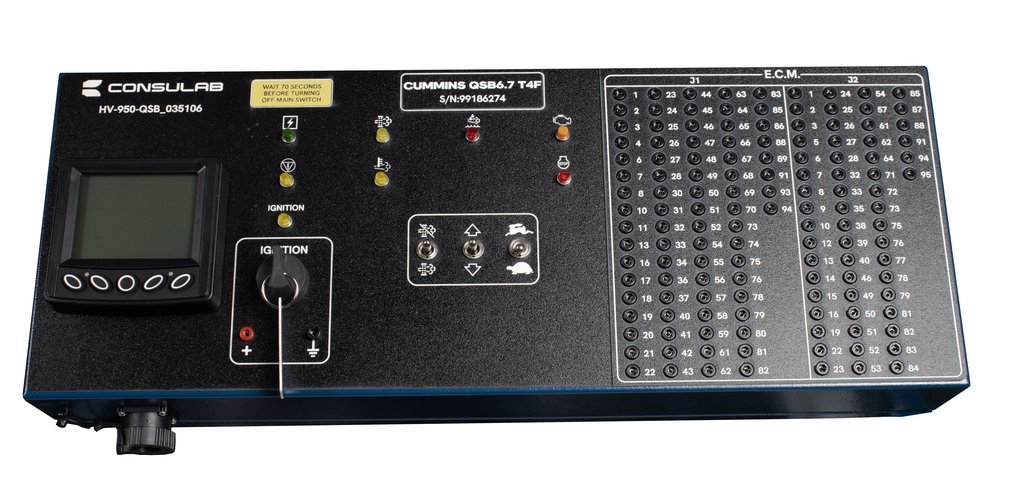

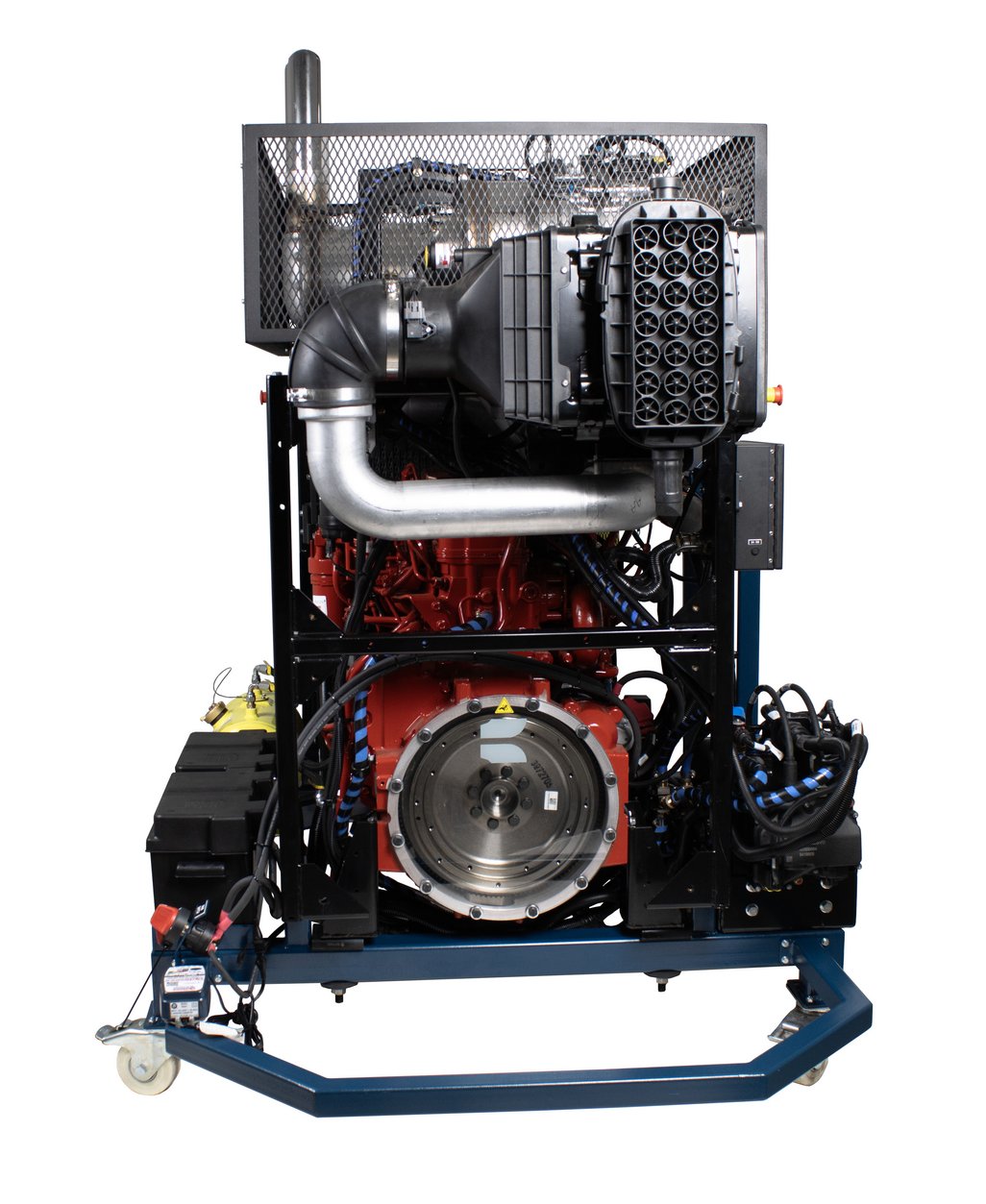

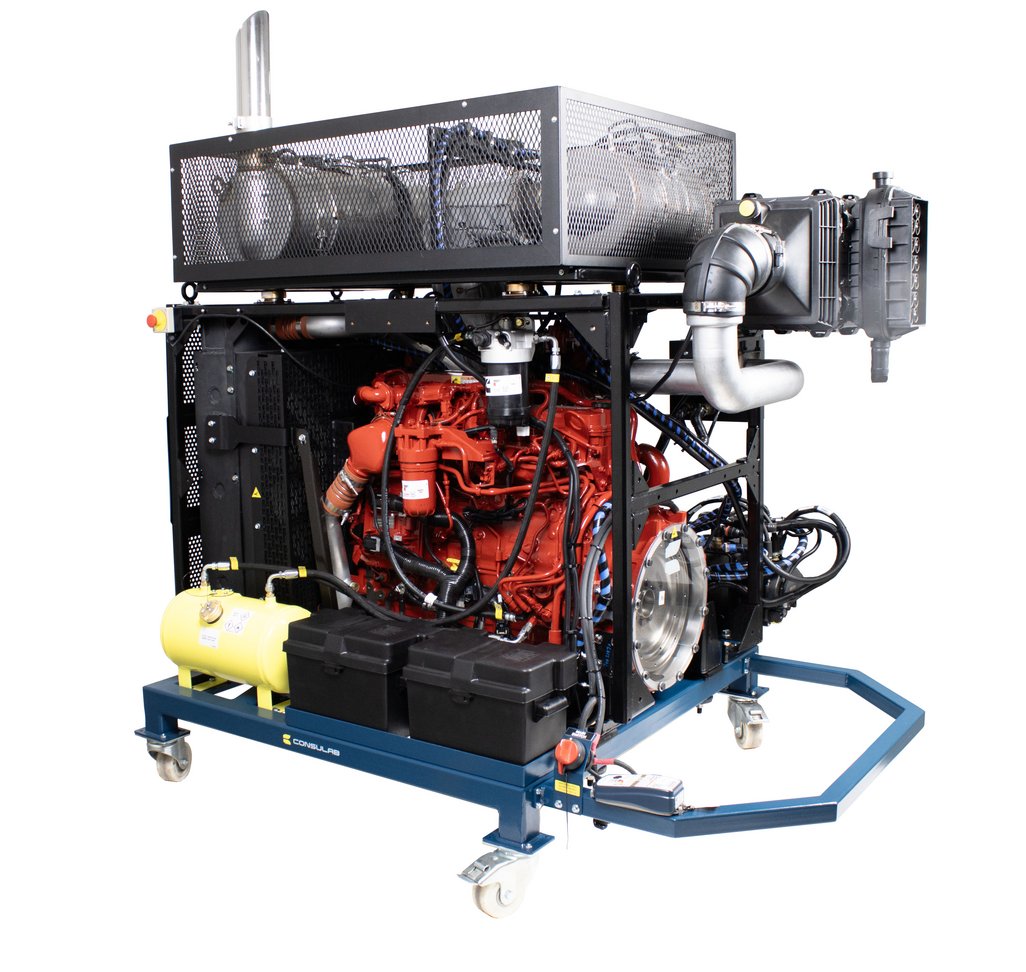

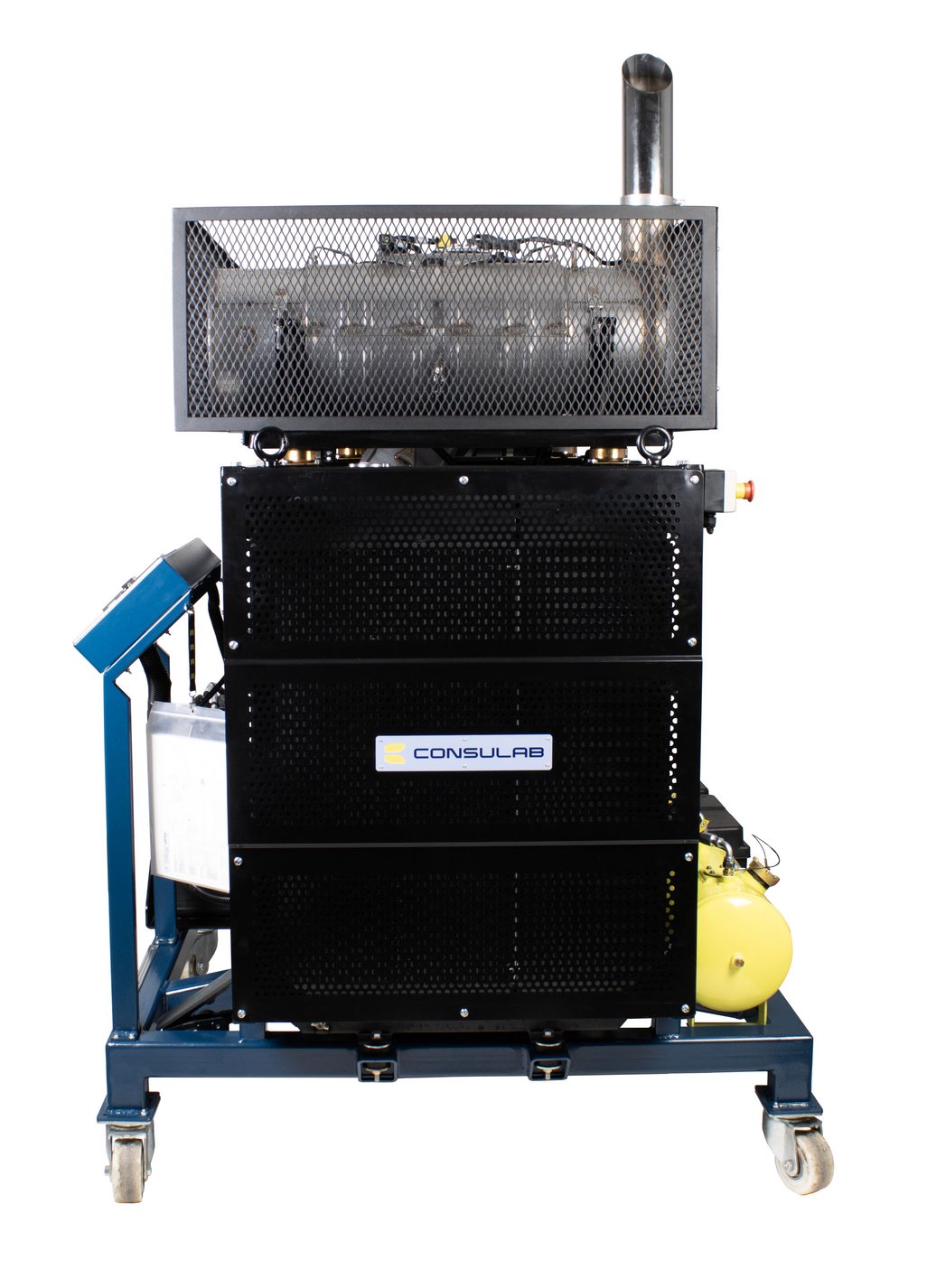

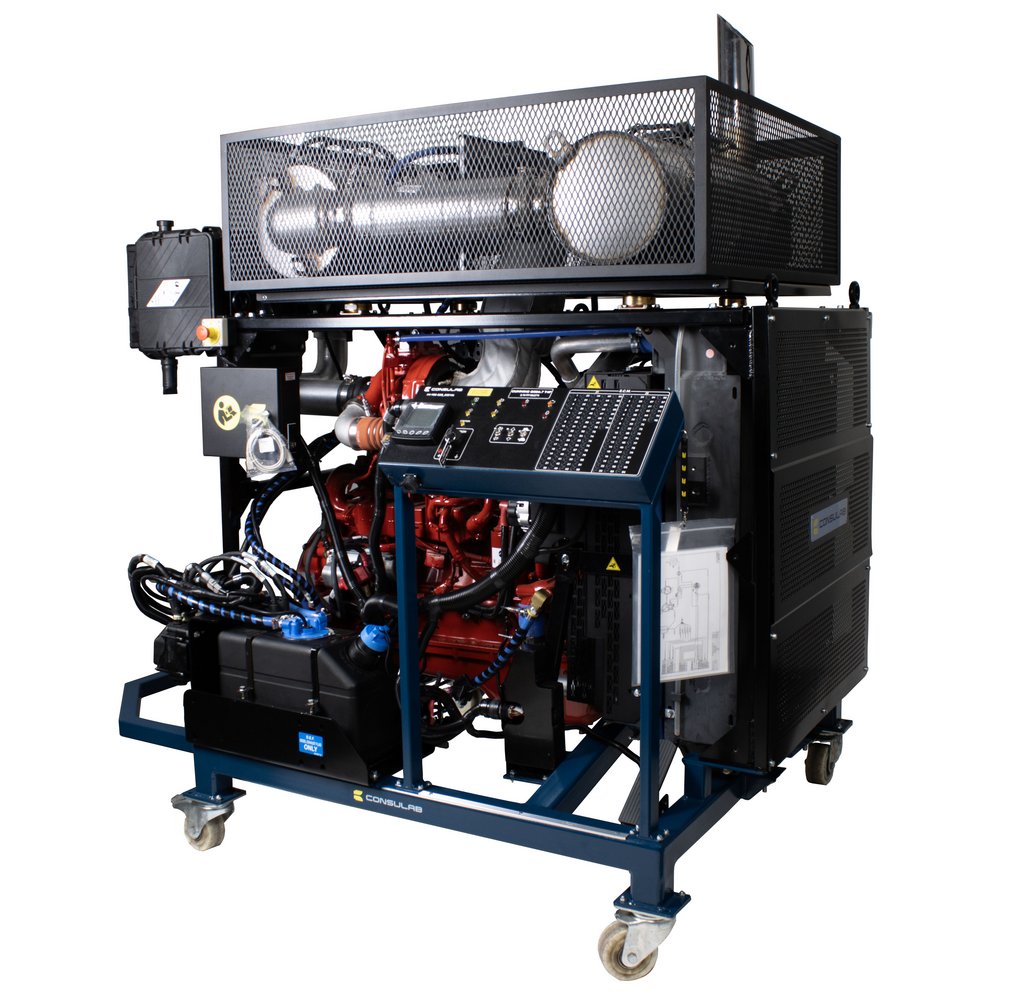

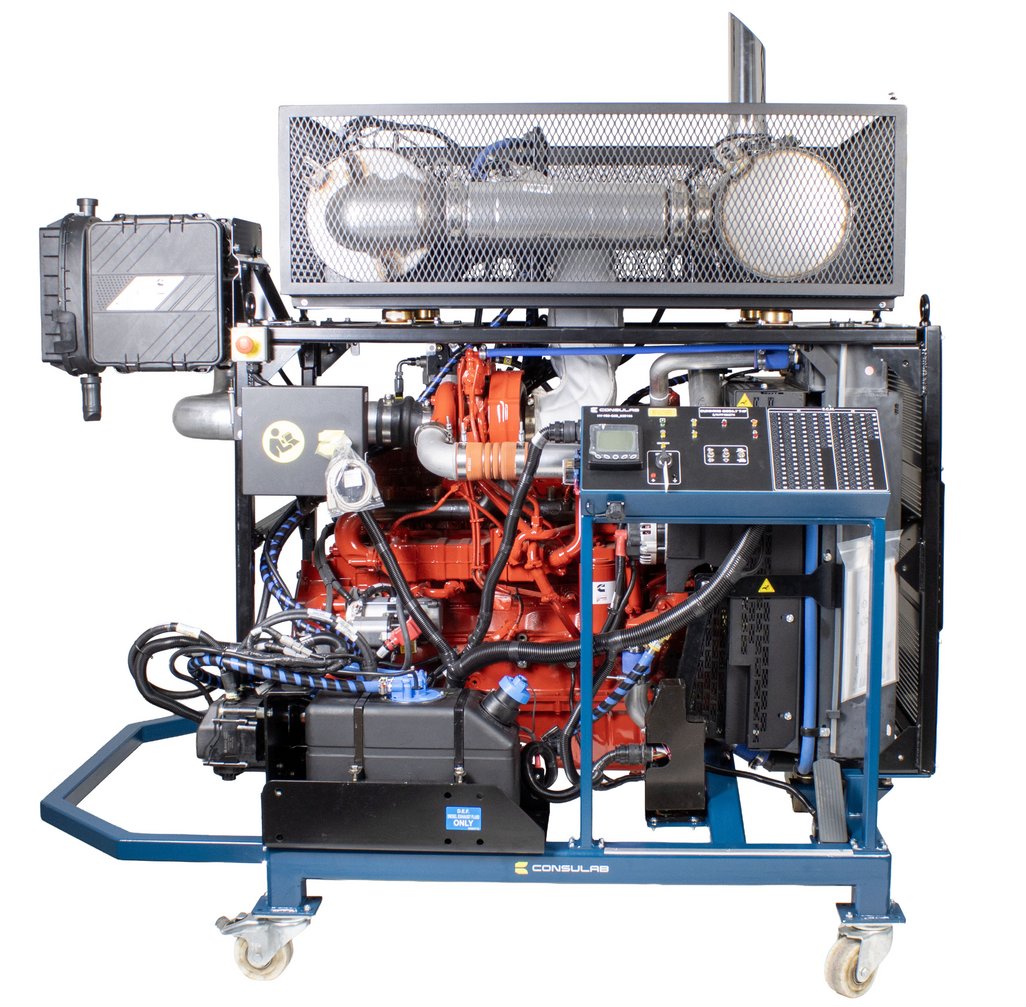

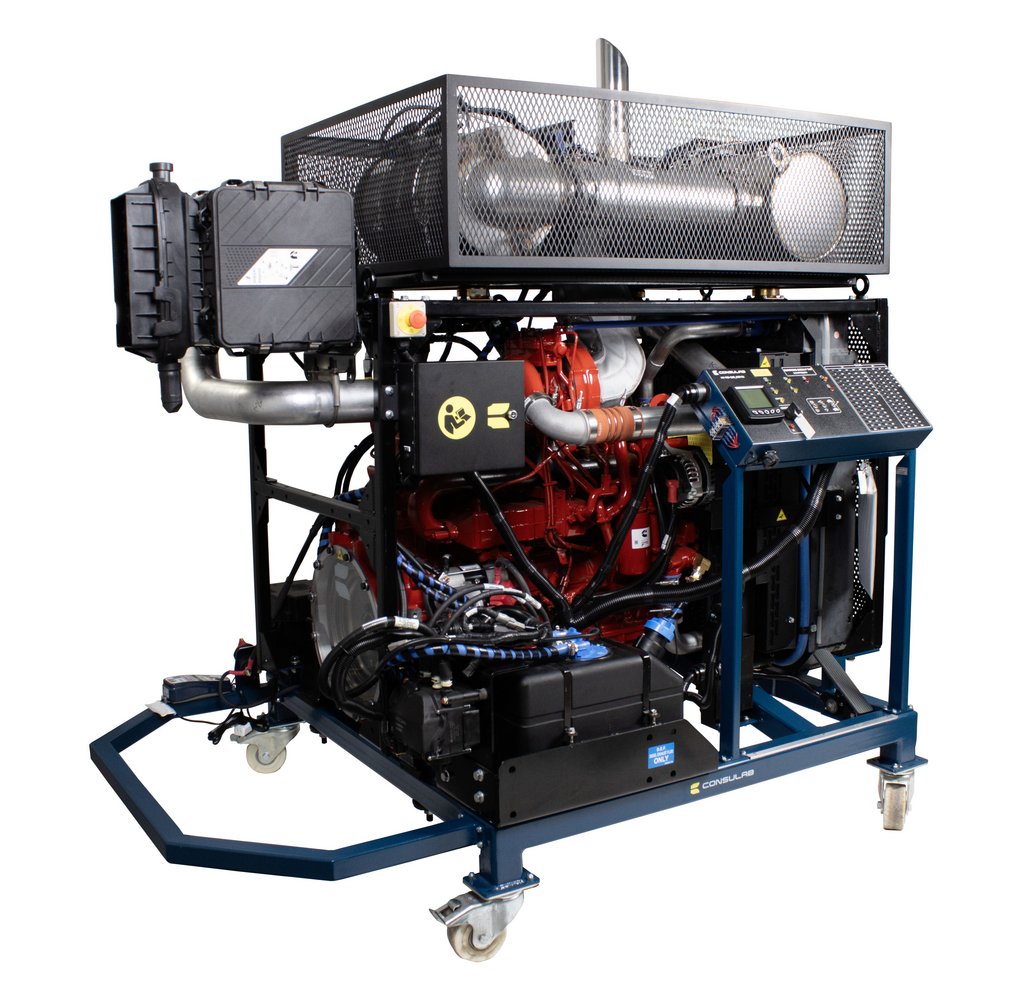

Features | New OEM In-line 6-cylinder, 4-stroke cycle diesel engine Interfaces with OEM diagnostic electronic service tools OEM Engine management system Air intake system with turbocharger and air filter Complete engine cooling system with fan, air-to-air, radiator, and fuel system OEM cold start system OEM ECM and wiring Master control panel with DLC (9-pin J1939 Deutsch connector) with: keyed ignition system with two (2) keys and testing points, indicator lights, enable/disable switches, PTO controls, ECM breakout box with OEM pinout identification, LOFA CANPlus display with J1939 parameters for installed components Complete intake and exhaust system with diesel particulate filter (DPF), maintenance indicators and muffler Engine lubrification system with filters Complete and operable fuse-protected electrical/electronic system (24 VDC) Fuel pedal 22L fuel tank with filters Heavy-duty batteries (2) with smart charger Battery cut-off switch Emergency stop buttons (2) Electronic programmable fault box with 12 faults with intermittent fault capability Safety guards on all rotating components in compliance with CSA regulation Z432-04 and on high temperature components Heavy duty 3” (76.2 mm) powder enamel coated square tubular steel frame Four (2) removable heavy-duty casters, two (2) locking swivel, two (2) fixed |
Application | Cummins’ Tier 4F equipped with new QSB6.7 diesel engine and post-treatment system |
