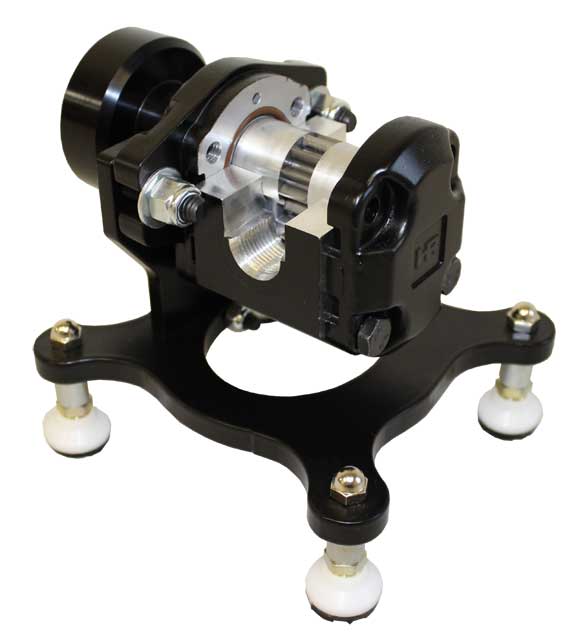

This cutaway vividly demonstrates the simplicity and reliability of an external gear pump. Students can rotate the shaft to watch the gears mesh and unmesh while observing how oil is carried around the housing. It’s an excellent teaching tool for introducing gear pump operation, volumetric efficiency, and wear patterns.
| Specification | |
|---|---|
| Product code | FP-GP-CM |

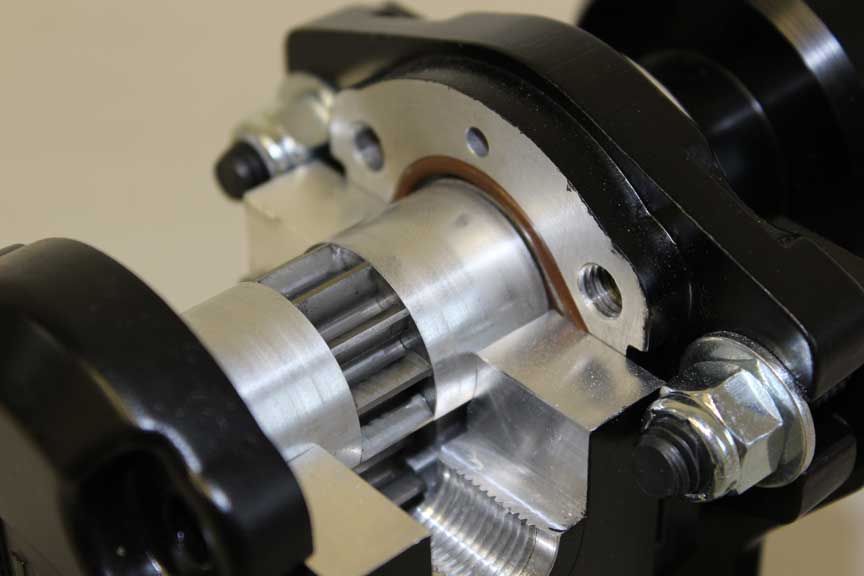

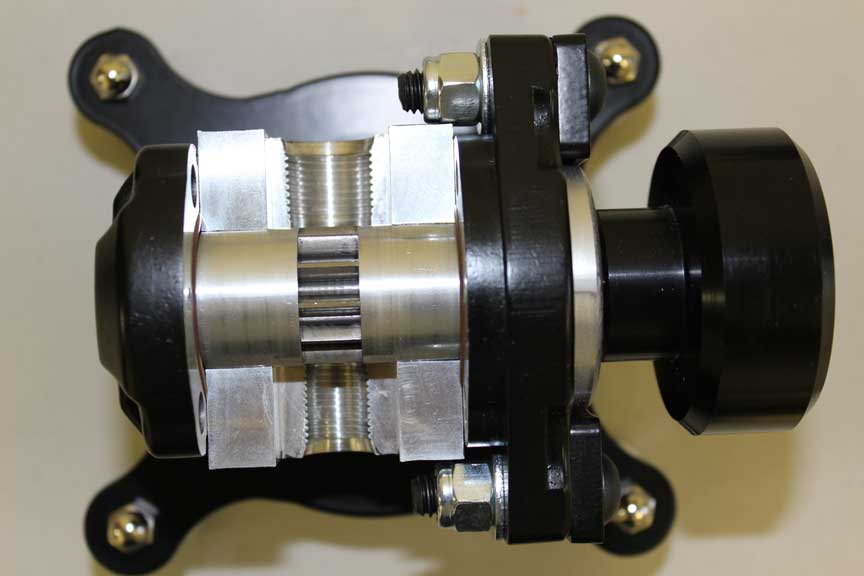

Educational advantages | This exceptional model is cutaway to expose the gears and wear plates. It removes all doubt as to whether the oil flows through the gears, or around the outside of the gears. |
|---|
